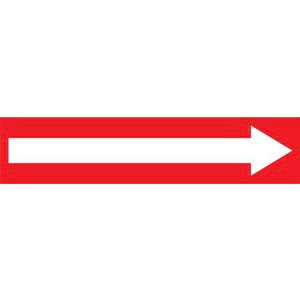

Wordless Pipe Marker - Long Arrow - ASME/ANSI - Self-Stick, Vinyl, 4" x 24", Red

Identify flow direction of pipes and piping systems with high-visibility pipe markings.

Product Code:54883

Write The First Review

$9.28

($9.28/item)

View Bulk Pricing

Adhesive Type: Self-Stick

Self-Stick

Snap Tite

Fits Pipe Outside Diameter: 8" to 10"

3/4" to 1-1/4"

1-1/2" to 2"

2-1/2" to 6"

8" to 10"

Color: Red

Product Information

Pipe markers are designed to meet or exceed ASME (ANSI) A13.1-2007 recommendations for size, color and visibility
Clearly marked pipes help prevent accidents and injuries
Orientation arrow identifies which direction contents are flowing
Choose from two different types of pipe markings; see below for details
Available in various sizes

Materials

J. J. Keller pipe labels are available in two materials to suit your specific needs! See below for available materials. To see materials available for a specific pipe marker, select the Material Type dropdown menu at the top of this page.

Self-Stick Vinyl

Displays printed legend with detachable arrow for proper directional flow marking
4-mil flexible vinyl overlaminated with a 2-mil, UV-resistant polyester film withstands harsh environments
High-tack, acrylic adhesive back with peel-off liner
Adhere to clean, smooth pipe surface
Gloss surface
-20°F to 176°F service temperature range

Snap Tite^™

Ideal for use on less-than-perfect pipe surfaces
Pre-coiled, heavy-gauge 20-mil rigid vinyl plastic is lightweight, yet durable to withstand tough industrial environments
Marker 'snaps' around to fit 360° over pipe
Fits over pipes with dirty, greasy, or rough surfaces
Easy to remove and reapply
Matte surface
-4°F to 158°F service temperature range (not recommended for hot pipes)

Color Identification

Colors are intended as a secondary means to identify the contents and characteristic hazards of the piping system. Below are the color guidelines designed to meet or exceed ASME (ANSI) recommendations.

Contents Of The Pipe	Color
Fire Quenching Fluids	White On Red
Toxic And Corrosive Fluids	Black On Orange
Flammable Fluids	Black On Yellow
Combustible Fluids	White On Brown
Potable, Cooling, Boiler Feed, And Other Water	White On Green
Compressed Air	White On Blue

Size & Letter Height

The outside diameter of the pipe (including insulation) determines the length of the pipe marker color field and the letter height.

Outside Diameter of Pipe	Length of Pipe Marker Color Field	Size of Letters
3/4" to 1-1/4"	8 inches	1/2"
1-1/2" to 2"	8 inches	3/4"
2-1/2" to 6"	12 inches	1-1/4"
8" to 10"	24 inches	2-1/2"
Over 10"	32 inches	3-1/2"

Visibility & Location

Visibility and location of the pipe labels are very important. Make sure the pipe markers can be read from a distance.

Installation Recommendations:

Above or below center visual line of pipe
Frequent intervals on straight pipe runs (visible from any point along the length)
Close to valves
Near branches and Ts in piping
Any change in direction of piping
Near points before and after pipe going through walls, ceilings or floors; and at 25' to 50' intervals on long straight pipe runs
