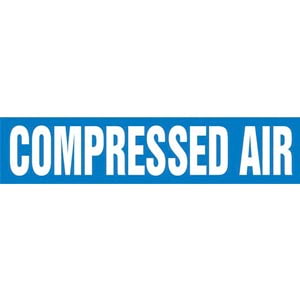

Compressed Air Pipe Marker - ASME/ANSI - Snap Tite, 9" x 8", Blue
Identify compressed air pipes and piping systems with high-visibility pipe markings.
Product Code:53021- Pipe markers are designed to meet or exceed ASME (ANSI) A13.1-2007 recommendations for size, color and visibility
- Clearly marked pipes help prevent accidents and injuries
- Choose from two different types of compressed air pipe markings; see below for details
- Available in various sizes
Materials
J. J. Keller pipe labels are available in two materials to suit your specific needs! See below for available materials. To see materials available for a specific pipe marker, select the Material Type dropdown menu at the top of this page.
Self-Stick Vinyl
- Displays printed legend with detachable arrow for proper directional flow marking
- 4-mil flexible vinyl overlaminated with a 2-mil, UV-resistant polyester film withstands harsh environments
- High-tack, acrylic adhesive back with peel-off liner
- Adhere to clean, smooth pipe surface
- Gloss surface
- -20°F to 176°F service temperature range
Snap Tite™
- Ideal for use on less-than-perfect pipe surfaces
- Pre-coiled, heavy-gauge 20-mil rigid vinyl plastic is lightweight, yet durable to withstand tough industrial environments
- Marker 'snaps' around to fit 360° over pipe
- Fits over pipes with dirty, greasy, or rough surfaces
- Easy to remove and reapply
- Matte surface
- -4°F to 158°F service temperature range (not recommended for hot pipes)
Color Identification
Colors are intended as a secondary means to identify the contents and characteristic hazards of the piping system. Below are the color guidelines designed to meet or exceed ASME (ANSI) recommendations.
| Contents Of The Pipe | Color |
|---|---|
| Fire Quenching Fluids | White On Red |
| Toxic And Corrosive Fluids | Black On Orange |
| Flammable Fluids | Black On Yellow |
| Combustible Fluids | White On Brown |
| Potable, Cooling, Boiler Feed, And Other Water | White On Green |
| Compressed Air | White On Blue |
Size & Letter Height
The outside diameter of the pipe (including insulation) determines the length of the pipe marker color field and the letter height.
| Outside Diameter of Pipe | Length of Pipe Marker Color Field | Size of Letters |
|---|---|---|
| 3/4" to 1-1/4" | 8 inches | 1/2" |
| 1-1/2" to 2" | 8 inches | 3/4" |
| 2-1/2" to 6" | 12 inches | 1-1/4" |
| 8" to 10" | 24 inches | 2-1/2" |
| Over 10" | 32 inches | 3-1/2" |
Visibility & Location
Visibility and location of the pipe labels are very important. Make sure the pipe markers can be read from a distance.
Installation Recommendations:
- Above or below center visual line of pipe
- Frequent intervals on straight pipe runs (visible from any point along the length)
- Close to valves
- Near branches and Ts in piping
- Any change in direction of piping
- Near points before and after pipe going through walls, ceilings or floors; and at 25' to 50' intervals on long straight pipe runs
Compliance Topic: OSHA Compliance, Labeling, Marking & Packaging
Industry: Workplace Safety / EH&S
Material:
Label Size: 9" x 8"
Letter Height: 3/4"
