Wordless Pipe Marker - Short Arrow - ASME/ANSI (013903)
+ / - Hover over image to Zoom

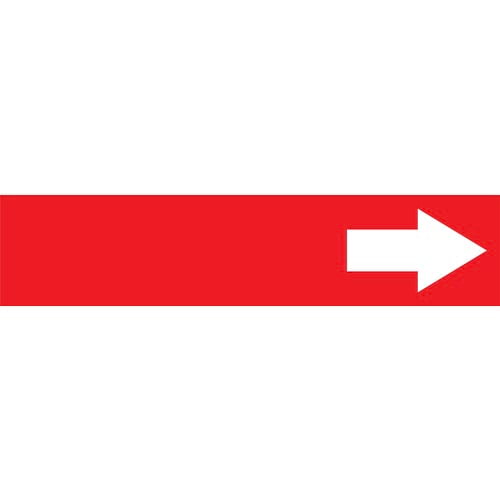

Wordless Pipe Marker - Short Arrow - ASME/ANSI

Identify flow direction of pipes and piping systems with high-visibility pipe markings. Read more.

Starting at:
$1.97 to $84.67
Add to Cart

Overview Pricing Specification Materials Color Identification Size & Letter Height Visibility & Location Related Solutions Q&A Reviews

Overview

  • Pipe markers are designed to meet or exceed ASME (ANSI) A13.1-2007 recommendations for size, color and visibility
  • Clearly marked pipes help prevent accidents and injuries
  • Orientation arrow identifies which direction contents are flowing
  • Choose from two different types of pipe markings; see below for details
  • Available in various sizes

Volume Pricing

Volume Pricing
Product Code Description 1 - 4 5 - 9 10 - 24 25 - 999999 1 - 999999
54922
Red Self-Stick Vinyl, 1" x 8"
$1.97
$1.95
$1.91
$1.85
54923
Red Self-Stick Vinyl, 1.5" x 8"
$2.08
$2.06
$2.02
$1.96
54924
Red Self-Stick Vinyl, 2.5" x 12"
$2.53
$2.50
$2.45
$2.38
54925
Red Self-Stick Vinyl, 4" x 24"
$6.39
$6.33
$6.20
$6.01
54926
Red Snap Tite, 6" x 8"
$4.64
$4.59
$4.50
$4.37
54927
Red Snap Tite, 9" x 8"
$6.13
$6.07
$5.95
$5.77
54928
Red Snap Tite, 14" x 12"
$11.39
$11.28
$11.05
$10.72
54929
Orange, Self-Stick Vinyl, 1" x 8"
$1.97
$1.95
$1.91
$1.85
54930
Orange, Self-Stick Vinyl, 1.5" x 8"
$2.08
$2.06
$2.02
$1.96
54931
Orange, Self-Stick Vinyl, 2.5" x 12"
$2.53
$2.50
$2.45
$2.38
54932
Orange, Self-Stick Vinyl, 4" x 24"
$6.39
$6.33
$6.20
$6.01
54933
Orange, Snap Tite, 6" x 8"
$4.64
$4.59
$4.50
$4.37
54934
Orange, Snap Tite, 9" x 8"
$6.13
$6.07
$5.95
$5.77
54935
Orange, Snap Tite, 14" x 12"
$11.39
$11.28
$11.05
$10.72
54936
Yellow, Self-Stick Vinyl, 1" x 8"
$1.97
$1.95
$1.91
$1.85
54937
Yellow, Self-Stick Vinyl, 1.5" x 8"
$2.08
$2.06
$2.02
$1.96
54938
Yellow, Self-Stick Vinyl, 2.5" x 12"
$2.53
$2.50
$2.45
$2.38
54939
Yellow, Self-Stick Vinyl, 4" x 24"
$6.39
$6.33
$6.20
$6.01
54940
Yellow, Snap Tite, 6" x 8"
$4.64
$4.59
$4.50
$4.37
54941
Yellow, Snap Tite, 9" x 8"
$6.13
$6.07
$5.95
$5.77
54942
Yellow, Snap Tite, 14" x 12"
$11.39
$11.28
$11.05
$10.72
54943
Brown, Self-Stick Vinyl, 1" x 8"
$1.97
$1.95
$1.91
$1.85
54944
Brown, Self-Stick Vinyl, 1.5" x 8"
$2.08
$2.06
$2.02
$1.96
54945
Brown, Self-Stick Vinyl, 2.5" x 12"
$2.53
$2.50
$2.45
$2.38
54946
Brown, Self-Stick Vinyl, 4" x 24"
$6.39
$6.33
$6.20
$6.01
54947
Brown, Snap Tite, 6" x 8"
$4.64
$4.59
$4.50
$4.37
54948
Brown, Snap Tite, 9" x 8"
$6.13
$6.07
$5.95
$5.77
54949
Brown, Snap Tite, 14" x 12"
$11.39
$11.28
$11.05
$10.72
54950
Green, Self-Stick Vinyl, 1" x 8"
$1.97
$1.95
$1.91
$1.85
54951
Green, Self-Stick Vinyl, 1.5" x 8"
$2.08
$2.06
$2.02
$1.96
54952
Green, Self-Stick Vinyl, 2.5" x 12"
$2.53
$2.50
$2.45
$2.38
54953
Green, Self-Stick Vinyl, 4" x 24"
$6.39
$6.33
$6.20
$6.01
54954
Green, Snap Tite, 6" x 8"
$84.67
54955
Green, Snap Tite, 9" x 8"
$6.13
$6.07
$5.95
$5.77
54956
Green, Snap Tite, 14" x 12"
$11.39
$11.28
$11.05
$10.72
54957
Blue, Self-Stick Vinyl, 1" x 8"
$1.97
$1.95
$1.91
$1.85
54958
Blue, Self-Stick Vinyl, 1.5" x 8"
$2.08
$2.06
$2.02
$1.96
54959
Blue, Self-Stick Vinyl, 2.5" x 12"
$2.53
$2.50
$2.45
$2.38
54960
Blue, Self-Stick Vinyl, 4" x 24"
$6.39
$6.33
$6.20
$6.01
54961
Blue, Snap Tite, 6" x 8"
$4.64
$4.59
$4.50
$4.37
54962
Blue, Snap Tite, 9" x 8"
$6.13
$6.07
$5.95
$5.77
54963
Blue, Snap Tite, 14" x 12"
$11.39
$11.28
$11.05
$10.72

Specification

Specification
Product Code Description Material Type Fits Pipe Outside Diameter Color Label Size Letter Height Alternate Product Code
54922
Red Self-Stick Vinyl, 1" x 8"
Self-Stick Vinyl
3/4" to 1-1/4"
Red
1" x 8"
1/2"
225PRDS A
54923
Red Self-Stick Vinyl, 1.5" x 8"
Self-Stick Vinyl
1-1/2" to 2"
Red
1.5" x 8"
3/4"
225PRDS B
54924
Red Self-Stick Vinyl, 2.5" x 12"
Self-Stick Vinyl
2-1/2" to 6"
Red
2.5" x 12"
1-3/4"
225PRDS D
54925
Red Self-Stick Vinyl, 4" x 24"
Self-Stick Vinyl
8" to 10"
Red
4" x 24"
2-1/2"
225PRDS E
54926
Red Snap Tite, 6" x 8"
Snap Tite
3/4" to 1-1/4"
Red
6" x 8"
1/2"
225PRDT A
54927
Red Snap Tite, 9" x 8"
Snap Tite
1-1/2" to 2"
Red
9" x 8"
3/4"
225PRDT B
54928
Red Snap Tite, 14" x 12"
Snap Tite
2-1/4" to 3"
Red
14" x 12"
1-1/4"
225PRDT C
54929
Orange, Self-Stick Vinyl, 1" x 8"
Self-Stick Vinyl
3/4" to 1-1/4"
Orange
1" x 8"
1/2"
225PORS A
54930
Orange, Self-Stick Vinyl, 1.5" x 8"
Self-Stick Vinyl
1-1/2" to 2"
Orange
1.5" x 8"
3/4"
225PORS B
54931
Orange, Self-Stick Vinyl, 2.5" x 12"
Self-Stick Vinyl
2-1/2" to 6"
Orange
2.5" x 12"
1-3/4"
225PORS D
54932
Orange, Self-Stick Vinyl, 4" x 24"
Self-Stick Vinyl
8" to 10"
Orange
4" x 24"
2-1/2"
225PORS E
54933
Orange, Snap Tite, 6" x 8"
Snap Tite
3/4" to 1-1/4"
Orange
6" x 8"
1/2"
225PORT A
54934
Orange, Snap Tite, 9" x 8"
Snap Tite
1-1/2" to 2"
Orange
9" x 8"
3/4"
225PORT B
54935
Orange, Snap Tite, 14" x 12"
Snap Tite
2-1/4" to 3"
Orange
14" x 12"
1-1/4"
225PORT C
54936
Yellow, Self-Stick Vinyl, 1" x 8"
Self-Stick Vinyl
3/4" to 1-1/4"
Yellow
1" x 8"
1/2"
225PYWS A
54937
Yellow, Self-Stick Vinyl, 1.5" x 8"
Self-Stick Vinyl
1-1/2" to 2"
Yellow
1.5" x 8"
3/4"
225PYWS B
54938
Yellow, Self-Stick Vinyl, 2.5" x 12"
Self-Stick Vinyl
2-1/2" to 6"
Yellow
2.5" x 12"
1-3/4"
225PYWS D
54939
Yellow, Self-Stick Vinyl, 4" x 24"
Self-Stick Vinyl
8" to 10"
Yellow
4" x 24"
2-1/2"
225PYWS E
54940
Yellow, Snap Tite, 6" x 8"
Snap Tite
3/4" to 1-1/4"
Yellow
6" x 8"
1/2"
225PYWT A
54941
Yellow, Snap Tite, 9" x 8"
Snap Tite
1-1/2" to 2"
Yellow
9" x 8"
3/4"
225PYWT B
54942
Yellow, Snap Tite, 14" x 12"
Snap Tite
2-1/4" to 3"
Yellow
14" x 12"
1-1/4"
225PYWT C
54943
Brown, Self-Stick Vinyl, 1" x 8"
Self-Stick Vinyl
3/4" to 1-1/4"
Brown
1" x 8"
1/2"
225PBRS A
54944
Brown, Self-Stick Vinyl, 1.5" x 8"
Self-Stick Vinyl
1-1/2" to 2"
Brown
1.5" x 8"
3/4"
225PBRS B
54945
Brown, Self-Stick Vinyl, 2.5" x 12"
Self-Stick Vinyl
2-1/2" to 6"
Brown
2.5" x 12"
1-3/4"
225PBRS D
54946
Brown, Self-Stick Vinyl, 4" x 24"
Self-Stick Vinyl
8" to 10"
Brown
4" x 24"
2-1/2"
225PBRS E
54947
Brown, Snap Tite, 6" x 8"
Snap Tite
3/4" to 1-1/4"
Brown
6" x 8"
1/2"
225PBRT A
54948
Brown, Snap Tite, 9" x 8"
Snap Tite
1-1/2" to 2"
Brown
9" x 8"
3/4"
225PBRT B
54949
Brown, Snap Tite, 14" x 12"
Snap Tite
2-1/4" to 3"
Brown
14" x 12"
1-1/4"
225PBRT C
54950
Green, Self-Stick Vinyl, 1" x 8"
Self-Stick Vinyl
3/4" to 1-1/4"
Green
1" x 8"
1/2"
225PGNS A
54951
Green, Self-Stick Vinyl, 1.5" x 8"
Self-Stick Vinyl
1-1/2" to 2"
Green
1.5" x 8"
3/4"
225PGNS B
54952
Green, Self-Stick Vinyl, 2.5" x 12"
Self-Stick Vinyl
2-1/2" to 6"
Green
2.5" x 12"
1-3/4"
225PGNS D
54953
Green, Self-Stick Vinyl, 4" x 24"
Self-Stick Vinyl
8" to 10"
Green
4" x 24"
2-1/2"
225PGNS E
54954
Green, Snap Tite, 6" x 8"
Snap Tite
3/4" to 1-1/4"
Green
6" x 8"
1/2"
225PGNT A
54955
Green, Snap Tite, 9" x 8"
Snap Tite
1-1/2" to 2"
Green
9" x 8"
3/4"
225PGNT B
54956
Green, Snap Tite, 14" x 12"
Snap Tite
2-1/4" to 3"
Green
14" x 12"
1-1/4"
225PGNT C
54957
Blue, Self-Stick Vinyl, 1" x 8"
Self-Stick Vinyl
3/4" to 1-1/4"
Blue
1" x 8"
1/2"
225PBLS A
54958
Blue, Self-Stick Vinyl, 1.5" x 8"
Self-Stick Vinyl
1-1/2" to 2"
Blue
1.5" x 8"
3/4"
225PBLS B
54959
Blue, Self-Stick Vinyl, 2.5" x 12"
Self-Stick Vinyl
2-1/2" to 6"
Blue
2.5" x 12"
1-3/4"
225PBLS D
54960
Blue, Self-Stick Vinyl, 4" x 24"
Self-Stick Vinyl
8" to 10"
Blue
4" x 24"
2-1/2"
225PBLS E
54961
Blue, Snap Tite, 6" x 8"
Snap Tite
3/4" to 1-1/4"
Blue
6" x 8"
1/2"
225PBLT A
54962
Blue, Snap Tite, 9" x 8"
Snap Tite
1-1/2" to 2"
Blue
9" x 8"
3/4"
225PBLT B
54963
Blue, Snap Tite, 14" x 12"
Snap Tite
2-1/4" to 3"
Blue
14" x 12"
1-1/4"
225PBLT C

Materials

J. J. Keller pipe labels are available in two materials to suit your specific needs! See below for available materials. To see materials available for a specific pipe marker, select the Material Type dropdown menu at the top of this page.

Self-Stick Vinyl

  • Displays printed legend with detachable arrow for proper directional flow marking
  • 4-mil flexible vinyl overlaminated with a 2-mil, UV-resistant polyester film withstands harsh environments
  • High-tack, acrylic adhesive back with peel-off liner
  • Adhere to clean, smooth pipe surface
  • Gloss surface
  • -20°F to 176°F service temperature range
self stick image


Snap Tite™

  • Ideal for use on less-than-perfect pipe surfaces
  • Pre-coiled, heavy-gauge 20-mil rigid vinyl plastic is lightweight, yet durable to withstand tough industrial environments
  • Marker 'snaps' around to fit 360° over pipe
  • Fits over pipes with dirty, greasy, or rough surfaces
  • Easy to remove and reapply
  • Matte surface
  • -4°F to 158°F service temperature range (not recommended for hot pipes)
snap tite image

Color Identification

Colors are intended as a secondary means to identify the contents and characteristic hazards of the piping system. Below are the color guidelines designed to meet or exceed ASME (ANSI) recommendations.

Contents Of The Pipe Color
Fire Quenching Fluids White On Red
Toxic And Corrosive Fluids Black On Orange
Flammable Fluids Black On Yellow
Combustible Fluids White On Brown
Potable, Cooling, Boiler Feed, And Other Water White On Green
Compressed Air White On Blue

Size & Letter Height

The outside diameter of the pipe (including insulation) determines the length of the pipe marker color field and the letter height.

Outside Diameter of Pipe Length of Pipe Marker Color Field Size of Letters
3/4" to 1-1/4" 8 inches 1/2"
1-1/2" to 2" 8 inches 3/4"
2-1/2" to 6" 12 inches 1-1/4"
8" to 10" 24 inches 2-1/2"
Over 10" 32 inches 3-1/2"

Visibility & Location

Visibility and location of the pipe labels are very important. Make sure the pipe markers can be read from a distance.

Installation Recommendations:

  • Above or below center visual line of pipe
  • Frequent intervals on straight pipe runs (visible from any point along the length)
  • Close to valves
  • Near branches and Ts in piping
  • Any change in direction of piping
  • Near points before and after pipe going through walls, ceilings or floors; and at 25' to 50' intervals on long straight pipe runs
Pipe Marker Location
Pipe Marker Visibility
