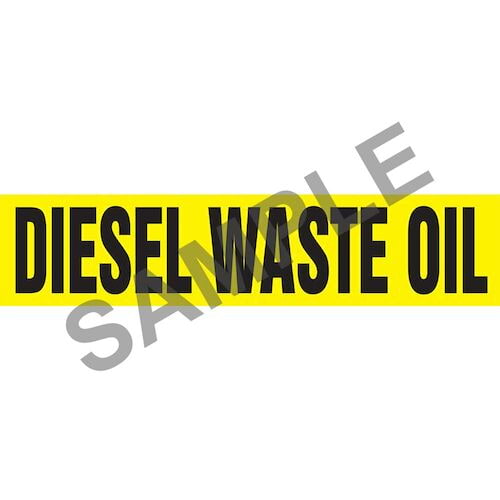

Diesel Waste Oil Pipe Marker - ASME/ANSI (013736)
+ / - Hover over image to Zoom

Diesel Waste Oil Pipe Marker - ASME/ANSI

Identify diesel waste oil pipes and piping systems with high-visibility pipe markings. Read more.

Add to Cart
Overview Pricing Specification Materials Color Identification Size & Letter Height Visibility & Location Related Solutions Q&A Reviews

Overview

  • Pipe markers are designed to meet or exceed ASME (ANSI) A13.1-2007 recommendations for size, color and visibility
  • Clearly marked pipes help prevent accidents and injuries

Volume Pricing

Volume Pricing
Product Code Description 1 - 4 5 - 9 10 - 24
Higher quantities available. Pricing reflected in shopping cart or call 1-877-564-2333 to order.
53154
Yellow, Self-Stick Vinyl, 1" x 8"
$2.59
$2.56
$2.52
53161
Green, Self-Stick Vinyl, 1" x 8"
$2.59
$2.56
$2.52

Specification

Specification
Product Code Description Material Color Label Size Letter Height
53154
Yellow, Self-Stick Vinyl, 1" x 8"
Vinyl
Yellow
1" x 8"
1/2"
53161
Green, Self-Stick Vinyl, 1" x 8"
Vinyl
Green
1" x 8"
1/2"

Materials

J. J. Keller pipe labels are available in two materials to suit your specific needs! See below for available materials. To see materials available for a specific pipe marker, select the Material Type dropdown menu at the top of this page.

Self-Stick Vinyl

  • Displays printed legend with detachable arrow for proper directional flow marking
  • 4-mil flexible vinyl overlaminated with a 2-mil, UV-resistant polyester film withstands harsh environments
  • High-tack, acrylic adhesive back with peel-off liner
  • Adhere to clean, smooth pipe surface
  • Gloss surface
  • -20°F to 176°F service temperature range
self stick image


Snap Tite™

  • Ideal for use on less-than-perfect pipe surfaces
  • Pre-coiled, heavy-gauge 20-mil rigid vinyl plastic is lightweight, yet durable to withstand tough industrial environments
  • Marker 'snaps' around to fit 360° over pipe
  • Fits over pipes with dirty, greasy, or rough surfaces
  • Easy to remove and reapply
  • Matte surface
  • -4°F to 158°F service temperature range (not recommended for hot pipes)
snap tite image

Color Identification

Colors are intended as a secondary means to identify the contents and characteristic hazards of the piping system. Below are the color guidelines designed to meet or exceed ASME (ANSI) recommendations.

Contents Of The Pipe Color
Fire Quenching Fluids White On Red
Toxic And Corrosive Fluids Black On Orange
Flammable Fluids Black On Yellow
Combustible Fluids White On Brown
Potable, Cooling, Boiler Feed, And Other Water White On Green
Compressed Air White On Blue

Size & Letter Height

The outside diameter of the pipe (including insulation) determines the length of the pipe marker color field and the letter height.

Outside Diameter of Pipe Length of Pipe Marker Color Field Size of Letters
3/4" to 1-1/4" 8 inches 1/2"
1-1/2" to 2" 8 inches 3/4"
2-1/2" to 6" 12 inches 1-1/4"
8" to 10" 24 inches 2-1/2"
Over 10" 32 inches 3-1/2"

Visibility & Location

Visibility and location of the pipe labels are very important. Make sure the pipe markers can be read from a distance.

Installation Recommendations:

  • Above or below center visual line of pipe
  • Frequent intervals on straight pipe runs (visible from any point along the length)
  • Close to valves
  • Near branches and Ts in piping
  • Any change in direction of piping
  • Near points before and after pipe going through walls, ceilings or floors; and at 25' to 50' intervals on long straight pipe runs
Pipe Marker Location
Pipe Marker Visibility
